Halo Onyx
Direct piping three temperature hot ,normal and cold counter top type water dispenser.

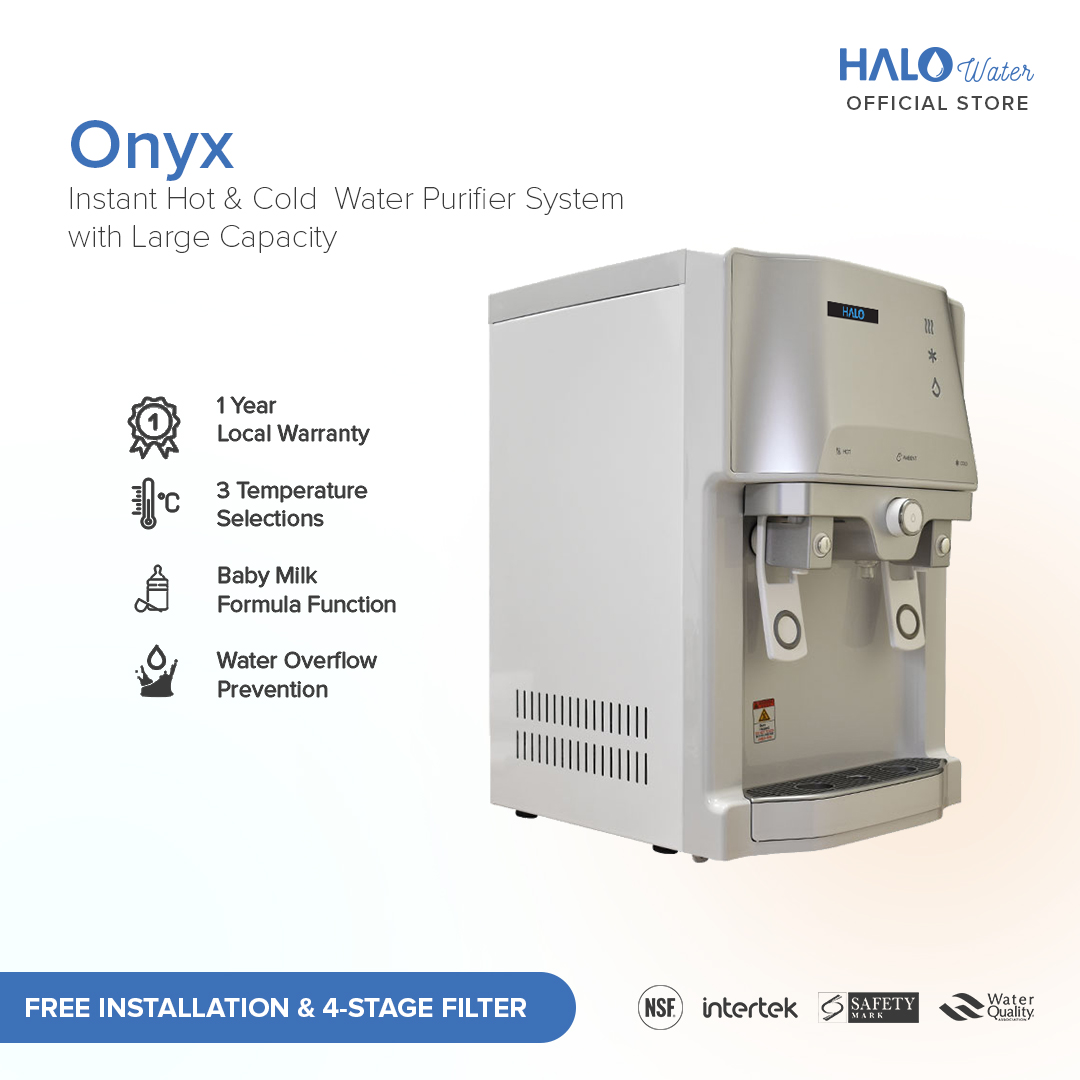

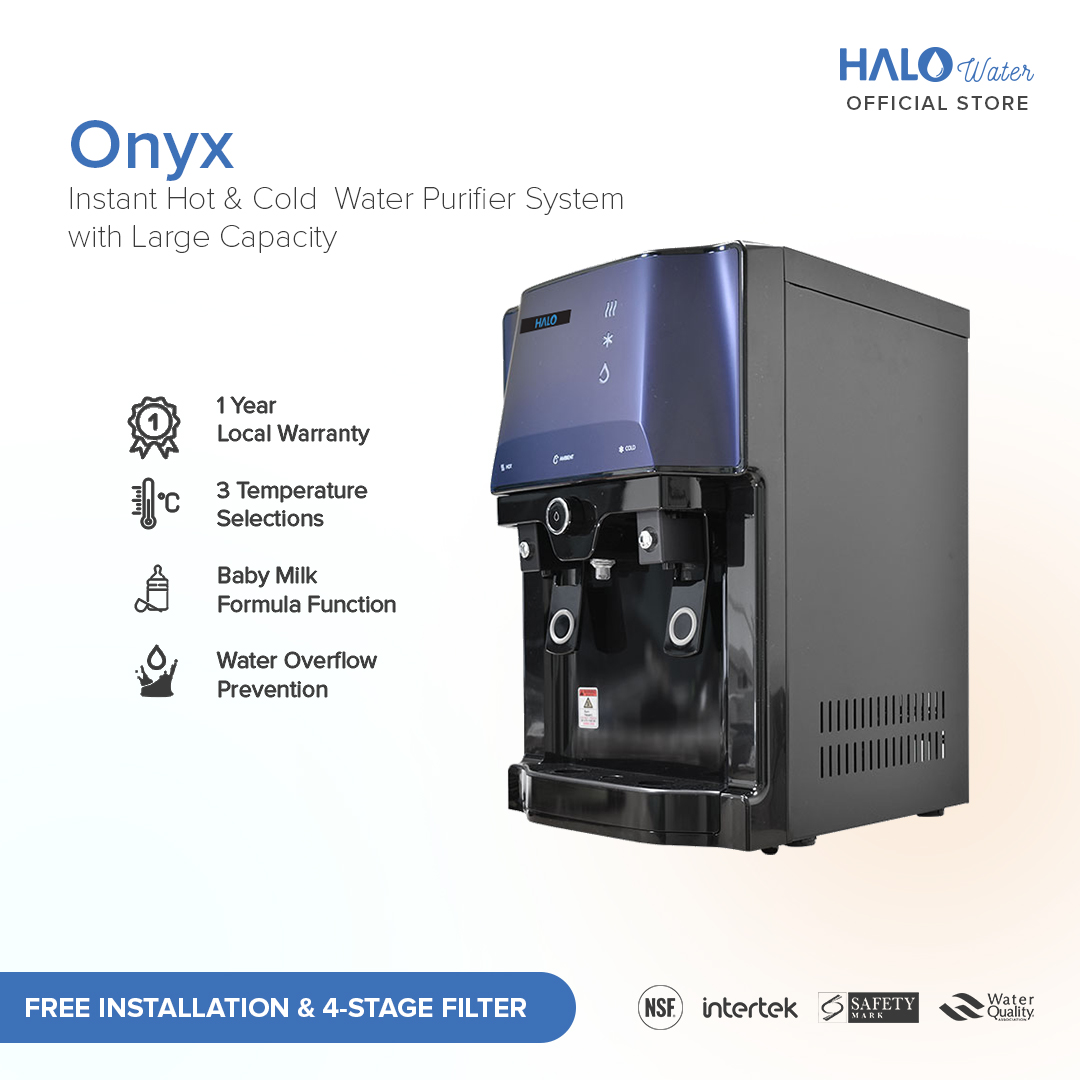

HALO Onyx
Water Purifier
This Onyx Water Purifier is a direct piping three temperature hot ,normal and cold counter top type water dispenser , a specially designed 4 stages filtration system for purification of your water source that fed to direct piping water dispenser units.
With these carefully selected and best matched filters install in water dispensers, water from your main fed water pipe flow thru the 4 different water filters before it enter your water dispenser reservoir tanks, thus effectively removes and significantly reduces possible contamination that might be found in your water source, this ensure that your water dispenser will always produce only refreshing taste and high quality filtered drinking water.
Features
Precision 4-Stage Filtration
This specialized sequence effectively eliminates rust, sand, and chlorine while the 0.01-micron Ultra Fine Mesh membrane blocks microscopic bacteria and viruses.
Intelligent Dual-Tank Thermal Management
For peace of mind, the system features a double-secure safety architecture with built-in thermostats to prevent overheating and a physical safety lock on the hot water tap to protect against accidental burns.
Stage Filtration
1st Stage
Sediment Filter
2nd Stage
Pre-carbon Filter
3rd Stage
UF Membrane Filter (Ultra Fine Mesh)
4th Stage
Alkaline Filter
Product Specification
Type
Table Top Hot, Cold & Normal Water Purifier
Water Tank Capacity
(Cold) 5.6ℓ/ hr, (Hot) 2ℓ/ hr
Double secure prevents from overheat or dry-heat. (by sensor and thermostat)
Double secure against water overflow. (by floating valve)
Automatic control for purified water refill
Each hot and chilled water has its own individual tank
Ambient water direct from filter
Hot water tap with safety device
Heating capacity: 10L / hour
Hot water temperature is between (at 82°C~ 90°C)
Hot water temperature is between (at 82°C~ 90°C)
Chilling system by compressor with 1/15HP Daewoo Korea Compressor
Product Frequentyly Asked Questions
Is the HALO Onyx a tankless or a tank-based system?
The HALO Onyx is a direct-piping countertop system that utilizes dedicated internal reservoir tanks for hot and chilled water. This design allows for a high dispensing capacity (up to 10L/hour for hot water) to ensure you don’t have to wait for the system to reheat or recool between uses.
Does the HALO Onyx have safety features for households with children?
Yes. The hot water tap is equipped with a dedicated safety device/lock to prevent accidental burns. Additionally, the unit features a “Double Secure” system (sensor and thermostat) to prevent overheating or “dry-heating” of the internal elements.
What are the installation requirements for the HALO Onyx?
Since it is a direct-piping model, it requires a connection to your main water fed pipe. Standard installation usually requires the unit to be within 1 meter of a water source and a power outlet. A standard 1/2-inch T-valve is typically used to split the water supply from your sink.
